Description
Model No.: ES – GW – RWE
Details:
Ethernet WiFi RS485 Gateway communicates via RS485 Modbus to collect or send data to different slave devices. RS485 Gateway works as rs485 Modbus master and communicates to different 31 Slave devices. This device has built-in WiFi, BLE & Ethernet which allows users to control and monitor different industrial machines, HMI, PLC, and meters for better and efficient production. Using this device helps you to get realtime data for analysis. Also, this will help the production team to have a better understanding of the machine and its performance. Using this device helps you to give prediction maintenance data for a better and longer life of the machine. This gateway is used as WiFi to RS485 Converter as well as Ethernet to RS485 Converter.
This Ethernet WiFi RS485 Gateway is widely used in the industrial automation industry for various monitoring. Ethernet WiFi RS485 Gateway is also useful for centralized monitoring and control center. Using this Ethernet WiFi RS485 Gateway not only you can monitoring but also you can control it from a remote location as well as from your control center. Ethernet WiFi RS485 Gateway is Industry 4.0 compatible device that supports all make a device for monitoring and controlling over RS485.
For more information related to monitoring, you can see the explanation video too.
Video
This Product is Compatible with Energy Monitoring System developed by us.
Features:
- Operating Voltage: up to 24V DC
- Single Port RS485
- Connect up to 31 Slave Devices
- Connect any Meter, VFD, HMI, PLC, Sensor, etc.
- Inbuilt Programmable WiFi & BLE (Bluetooth)
- Built-in Ethernet with IEEE 802.3, 10/100 Base compatible.
- MQTT, HTTP, FTP protocol supported
- 400 Watts peak pulse power (tp=8/20µs)
- IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns) •IEC 61000-4-5 (Lightning) 12A (8/20µs) Protects two +12V to -7V lines

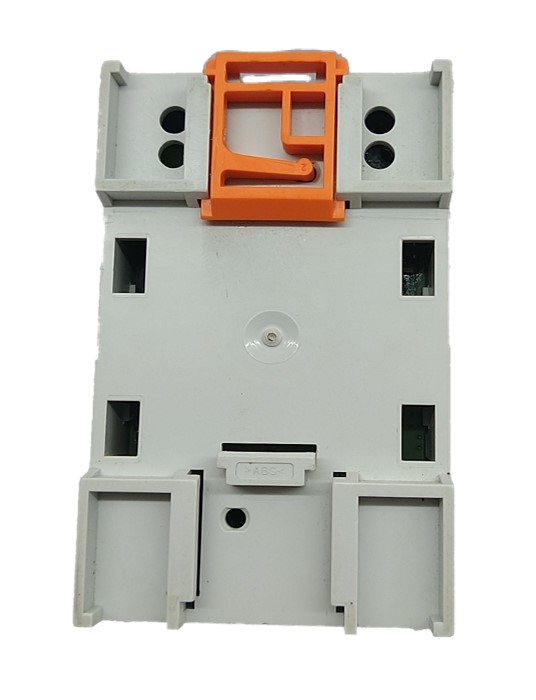

- Din Rail and Wall Mount attachment inbuilt.
- Amazing Enclosure Design which Helps the device to remain cool in the Harse environment from their Air vents.
- Din and Wall mount both options available.
- On-Board 512KB memory for data storage up to 7 days every hour.
- Firmware Over the Air (FOTA) Update.
- Auto & Dynamic IP.
